Atomos Shogun 7 HDR Pro/Cinema Monitor-Recorder-Switcher

Atomos Shogun 7 HDR Pro/Cinema Monitor-Recorder-Switcher

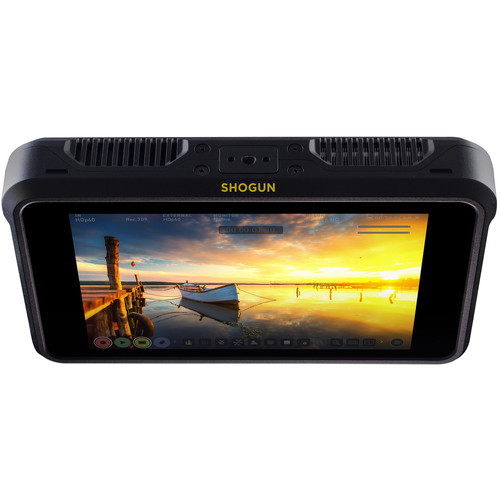

Monitor and record in the field with the 7″, 1920 x 1280 Shogun 7 from Atomos. This versatile, professional on-camera recording monitor offers up to DCI 4K raw recording and HDMI and 12/6/3G-SDI inputs/outputs. Output your content for director or client viewing in Dolby Vision HDR using the Shogun 7, AtomOS10 platform, and a compatible display.

This monitor supports resolutions up to DCI 4K (4096 x 2160) at 60p and up to 2K at 240p for slow-motion effects. Record to 2.5″ SSDs using Apple ProRes Raw, ProRes, CinemaDMG (up to 30p), and Avid DNxHD codecs.

The Shogun 7’s 10-bit (8+2 FRC) panel features 360-zone backlight, 1500 cd/m² brightness, and a 1,000,000:1 contrast ratio. Its native AtomHDR (log) display enables you to more accurately monitor your log gamma footage without having to view flat, washed-out images or use a LUT to compress the dynamic range and color space. Built-in presets accurately translate popular log formats from ARRI, Canon, Fujifilm, JVC, Nikon, Panasonic, RED, and Sony cameras.

Save editing time by tagging your footage on-the-fly and recording directly to Final Cut Pro x, Adobe Premiere, or Avid Media Composer formats (third-party plug-ins may be required for tagging).

Power the Shogun Inferno with a single Sony L-series battery; dual battery plates support hot swapping, enabling longer uninterrupted runtimes. For audio recording, the monitor supports balanced XLR inputs with +48V phantom power via a separately available audio breakout cable. Additional Shogun 7 features include genlock input, SDI/HDMI cross conversion, and a variety of on-screen exposure analysis, framing, focus assist, and other display tools.
