Atomos 7″ Shogun Ultra Monitor-Recorder

Atomos 7″ Shogun Ultra Monitor-Recorder

Showtime
Shogun Ultra is your gateway to amazingly fast and productive cloud workflows. So much more than a super-bright monitor recorder, it takes you to new heights of productivity and collaborative creativity. Work faster, work better.

HIGHLY-RESPONSIVE TOUCHSCREEN

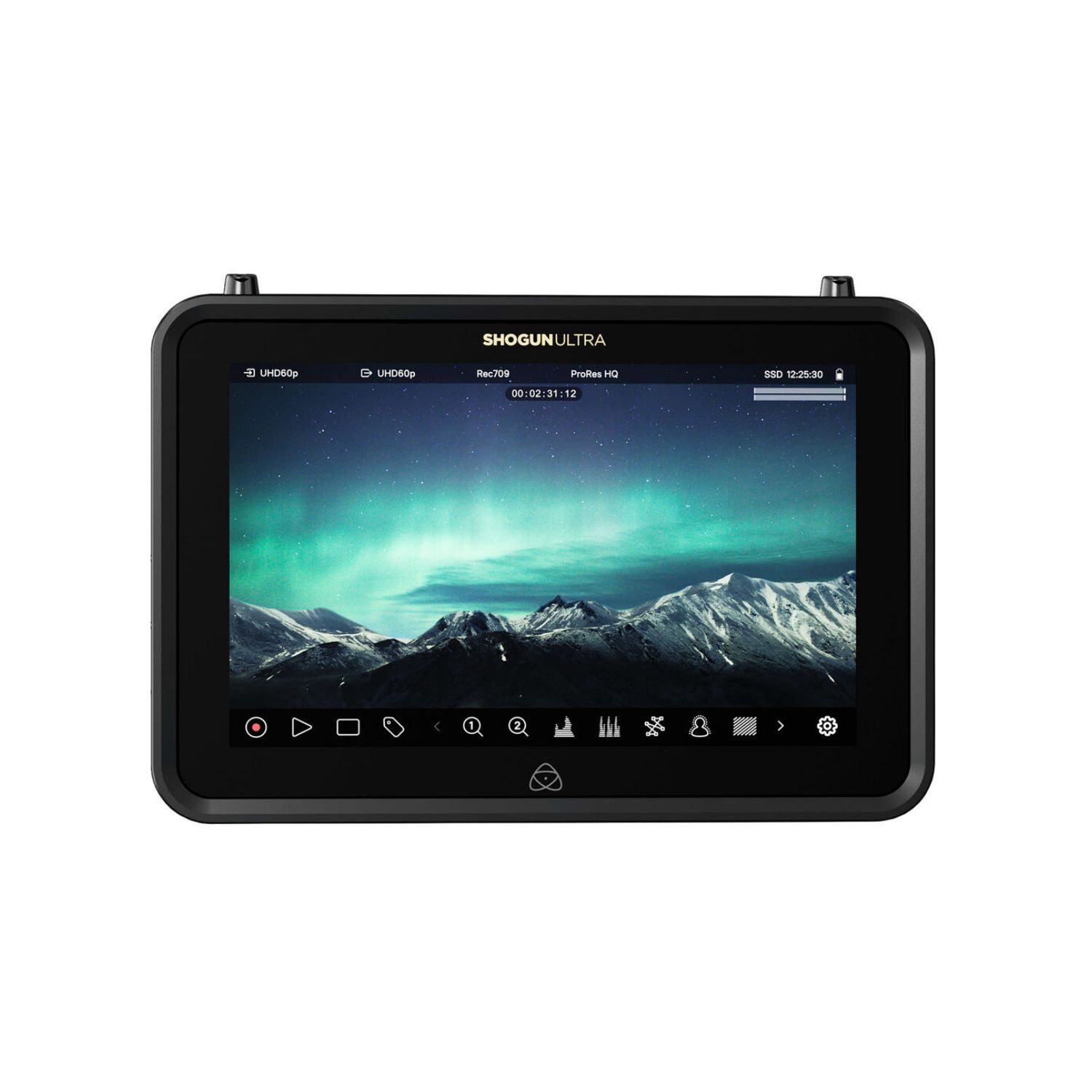

Super bright screen
Shogun Ultra’s super-bright, large 7-inch screen is viewable in almost every kind of light. Indoors, outdoors, or anywhere you need critical, viewable, instant feedback on your images. With 2000 nits brightness, it’s ideal for checking your HDR footage while you’re still on set. Or play back your recently captured shots on the same pristine screen for review or even uploading to the cloud.

LOCAL AND CLOUD
Choose your workflow
Shogun Ultra has two faces: Local and Cloud. Use it conventionally, and you have an incredible HDR screen, new monitoring tools and both HDMI and 12G-SDI. Turn on its wireless and network capabilities, and you have access to new and productive cloud workflows like camera to cloud and Atomos Edit. You can even edit your project in the cloud and publish directly to social media within minutes of shooting the action.

RAW CAPTURE
Enhance your camera
Shogun Ultra can capture RAW inputs up to 8K at 30fps, 6K at 60fps and 4K at 30fps and simultaneously output a standard viewable video signal via HDMI or SDI for devices that don’t support RAW formats. With a super bright 2000nit 7-inch SuperAtom IPS touchscreen for clear images and easy accessibility to the features in AtomOS, Shogun Ultra has a new operating system and user interface.

The Ultimate Shogun
In addition to network and SDI connectivity, you get access to super-efficient cloud workflows, and you can cross-convert between HDMI and SDI. Take advantage of the new, ultra-fast and reliable WiFI 6E for more stable connections. Shogun Ultra, which can be remote-controlled over Bluetooth with AtomRemote App, is the most practical and affordable way to stream, transfer and edit in the cloud.

DUAL RECORD
Capture simultaneously up to 4K 60p ProRes RAW and HD 60p H.265
Record full-quality files in ProRes RAW up to 4K 60p while at the same time recording HD 60p to H.265. It’s the best of both worlds. Boost your productivity by storing your definitive copy in ProRes RAW ready for your post-production workflow, and use your H.265 copy for your camera to cloud activities.

CAMERA-TO-CLOUD
Publish from the cloud
Record higher-quality media for instant publishing. The new 4K camera to cloud mode lets you record and upload much higher quality H.265 video with higher framerates.* H.265 files are half the size of H.264 media. They’re small enough for camera-to-cloud workflows but more than good enough for immediate use on social media, sports reporting or news gathering. It’s the fastest way to get your video in front of your viewers (requires Atomos Cloud Studio (ACS) subscription). Also a super useful mode to record proxies at up to 4K 60p to match a original in-camera (OCF) file.

VIDEO OVER IP
NDI HD and 4K TX
4k TX is a paid option.
NDI is a way to send video over ordinary networks (including Wi-Fi and mobile) in high quality but with remarkably low bandwidth requirements. It’s increasingly used in live production, and now your Shogun Ultra can take part in an NDI environment. The NDI TX option turns your Shogun Ultra into an
NDI source, visible to all other authorized devices
on the network.

SDI CINE
Original camera filenames over SDI
Automatically match filenames, timecode and record triggers from ARRI, Canon, RED and Sony cameras. Previously, camera to cloud relied on matching filenames with hero and proxy files made by AtomOS. Now, thanks to cooperation with ARRI, Canon, RED
and Sony, Atomos C2C files are matched back to the original in-camera (OCF) filenames. This gives a joined-up process when conforming C2C or SSD proxy files
in the edit with camera files. On camera or on Atomos: it’s your choice.

VERSATILITY
Any camera, any format. Anywhere.
Pair Shogun Ultra equally well using SDI or HDMI with smaller cameras as part of a minimal setup or with full-size camera rigs on large-scale productions. Shogun Ultra is made from precision materials with a solid aluminium frame, crafted for maximum durability. Weighing only 730g (1.6lbs), you can use it comfortably with a handheld camera. Shogun Ultra includes anti-rotational ⅜ – 16 mount points on the top and bottom. It ships with a ¼ – 20 adaptor for easy mounting on industry-standard equipment from a wide range of manufacturers.

Introducing
 RemoteView
Atomos RemoteView lets you share incoming video on your Atomos screen with other Atomos monitors, as well as with iPads, Macs and Apple TVs wirelessly. You can monitor what’s happening on-set and look through any connected camera taking the shot from anywhere in the world.

Features

• Support for more camera models with 12G-SDI
• SDI input to HDMI output conversion
• Wi-Fi 6E and 1GbE Ethernet
• Stream to Facebook, Twitch, YouTube, and custom RTMP/S services
• Share media with camera to cloud (C2C) and Atomos Edit
• Live stream an HDMI or SDI source into Atomos Live Production or RemoteView
• Synchronize cameras, audio recorders, and applications with AirGlu™
• Support for AtomRemote app
• Add major features without adding significantly to the overall footprint

Specifications
